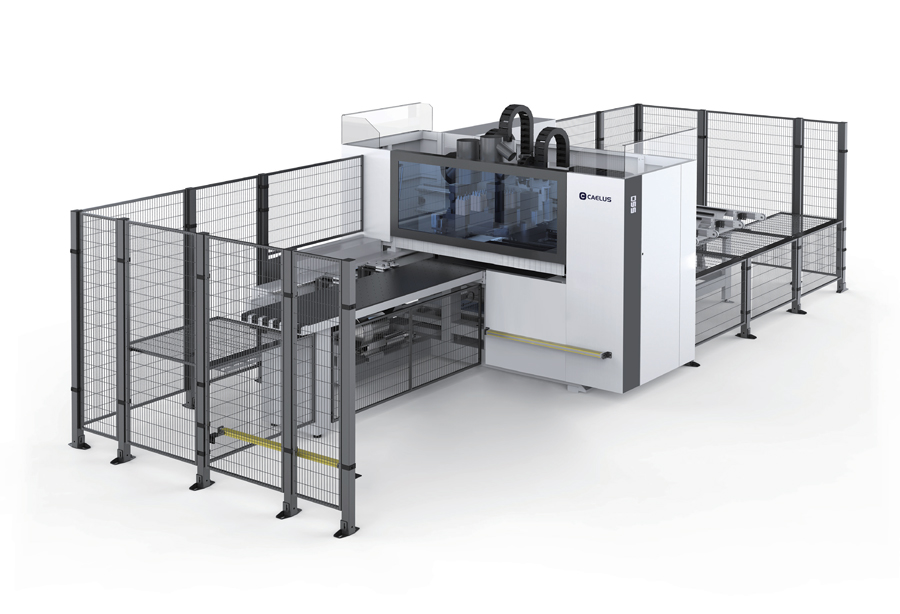

D5S CNC 6-Sided Drilling Center

Name: D5S CNC 6-Sided Drilling Center
Rating: 4.1 (73 reviews)

Equipped with twin drilling heads for simultaneous processing, delivering higher efficiency.
Easy to operate and reduces labor intensity.
Compatible with various software.
Ideal for six-sided drilling of various panels (hinge holes, through holes, blind holes).
Supports horizontal drilling, symmetrical hole processing, as well as grooving and milling with small spindles.

Product Details

Standard Functions:

Panel Saw‘s Intelligent Sawing Control System

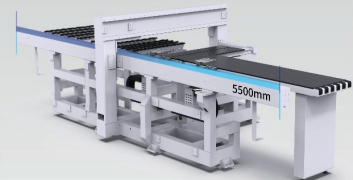

1. Heavy machine body structure

The structure with robotic welding, annealing, shot blasting, sandblasting, precision machining and other processes, effectively ensuring the long-term stable operation of the equipment.

2. This drilling head includes 2 top drilling blocks (26V+18H) and 1 bottom drilling block (9V). Max drill diameter 35mm, speed 4500rpm (2700rpm at 35mm with FC). Shank 10mm, tool length 70mm, max processing depth 45mm.

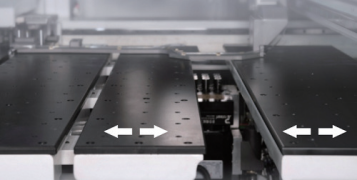

3. Double transitional air flotation worktable enables flexible movement, stable panel support, enhanced drilling accuracy and dust prevention.

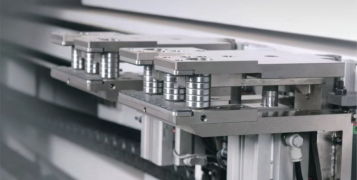

4. Upgrade dual gripper and long guide rail, Quick working with various panel holes.

Panel Saw's Smart Saw Carriage Positioning System

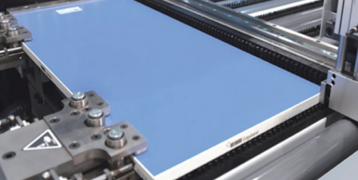

5. Quick positioning and clamping with automatic side pushing.

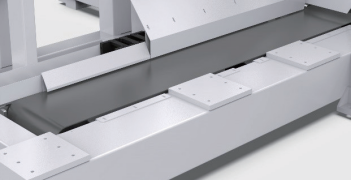

6. Belt conveyor with dust collection to remove dust inside the machine.

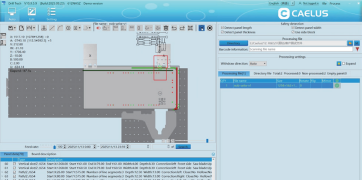

7. Simulate processing path for visualization and accurate time prediction.

Panel Saw's 22kW PermanentMagnet Synchronous Drive

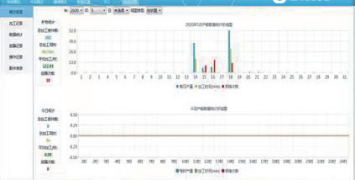

8. Processing record statistics for real-time production progress monitoring.

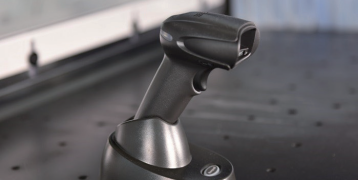

9. Manual barcode scanner for workpiece production requirement identification.

Panel Saw‘s Linear Guide for Pressure Beam

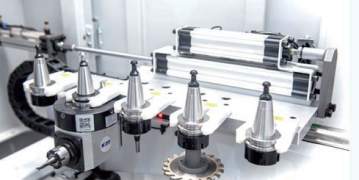

10. 5-position automatic tool change magazine for automatic tool changing, supporting grooving, milling, lamello and other connector processing.

Optional Features:

1. Grooving Function (Optional): With grooving saw blade; X-range 55–880mm; saw φ120mm×6mm, max depth 20mm; left/right saws on both sides of drilling head.

2. Two-Side Aggregate (Custom Optional): Supports grooving saw, lamello, Lecco cutter for side processing; max tool length ≤ 50mm.

Technical Parameters
Packing size	5600L2300W2425H mm
Gross weight	3500kg
X/A axis max speed	140m/min
Y axis max speed	90m/min
Z axis max speed	50m/min
B axis max speed	75m/min
C axis max speed	30m/min
Tool quantity	Top x 2 : 26(V)+18(H) Bottom x 1: 9(V)
Spindle Index	Top spindle: Power: 5.5kW / 12000-18000rpm adjustable (can link with different tools) with ISO30 interface Bottom spindle: Power: 3.5kW / 18000rpm
Panel length	200～2800mm
Panel width	50～1220mm
Panel thickness	9～60mm
Panel unevenness	≤0.3mm
Power	28.22kW
Overall size	6040L3140W2190H mm
Air pressure	0.6Mpa
Vacuum tube size	φ200mm2; φ150mm1; φ100mm*1
Air consumption	450L/min
Air volume in dust collection	9540 m³/h
Air speed at the dust inlet	30m/s
Tool magazine	5 positions tools change magazine

CAELUS D5S CNC 6-Sided Drilling Center is a machining center for panel furniture. It processes the top, bottom and four edges in one setup, supporting hinge, through, blind, horizontal and symmetrical holes. Optional grooving and milling extend its capability. Twin drilling heads, air-flotation support, dual grippers and automatic side pushing help reduce handling and operator workload. Suitable for custom furniture, cabinets, wardrobes and office furniture, the D5S supports varied hole patterns with consistent positioning.

Key Advantages
1. Heavy-Duty Machine Body: Robotic welding, annealing, shot blasting and precision machining support stable long-term operation.
2. Multi-Position Drill Layout: The drilling system includes upper and lower drilling blocks for different vertical and horizontal hole requirements.
3. Visual Processing Simulation: Displays the machining path and supports processing time prediction before production.
4. Real-Time Production Records: Monitors processing records and production progress during operation.
5. Dust Collection Conveyor: Removes dust inside the machine while supporting cleaner panel transfer.

FAQ
Q1. What production problems can a CNC 6-sided drilling machine solve?
A: A CNC 6-sided drilling machine is designed for panel processing that requires holes on the top, bottom and four edges. It helps reduce repeated panel handling, manual repositioning and operator workload when producing hinge, through, blind, horizontal or symmetrical holes.

Q2. Does "six-sided" mean that all six surfaces are drilled at the same time?
A: Not necessarily. Six-sided refers to the six machinable surfaces of the panel. The D5S uses its drilling heads according to the programmed processing sequence. Actual cycle time depends on the panel size, hole pattern and required operations.

Q3. Why do drilled holes sometimes fail to align during furniture assembly?
A: Misalignment can result from repeated repositioning, incorrect panel orientation, unstable support or unsuitable machining data. The D5S uses automatic side pushing, dual grippers and an air-flotation worktable to support positioning stability.

Q4. How can I reduce chipping around holes in melamine panels?
A: Chipping may be related to drill condition, tool runout, feed rate, panel support and breakthrough pressure. The D5S uses air-flotation support, panel clamping and dust collection to help maintain stable processing. Drill selection and cutting parameters should be verified with the actual panel material.
